AK-ZH-YT2 系列排屑機一體式綜合過濾系統
AK-ZH-YT2 Chip Removal and Coolant Filtration System
一、性能、特點及用途--Performance,characteristics and application

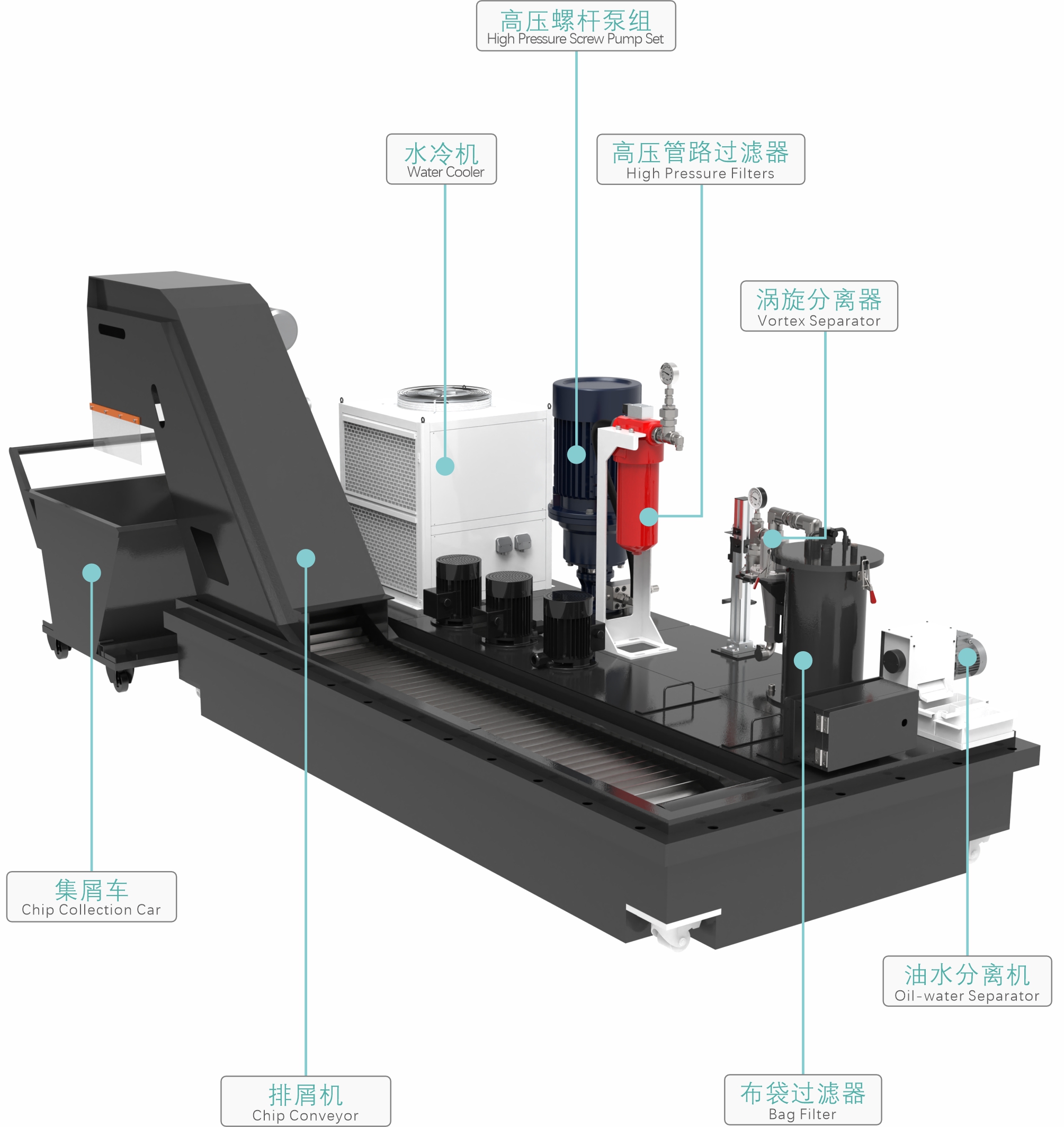

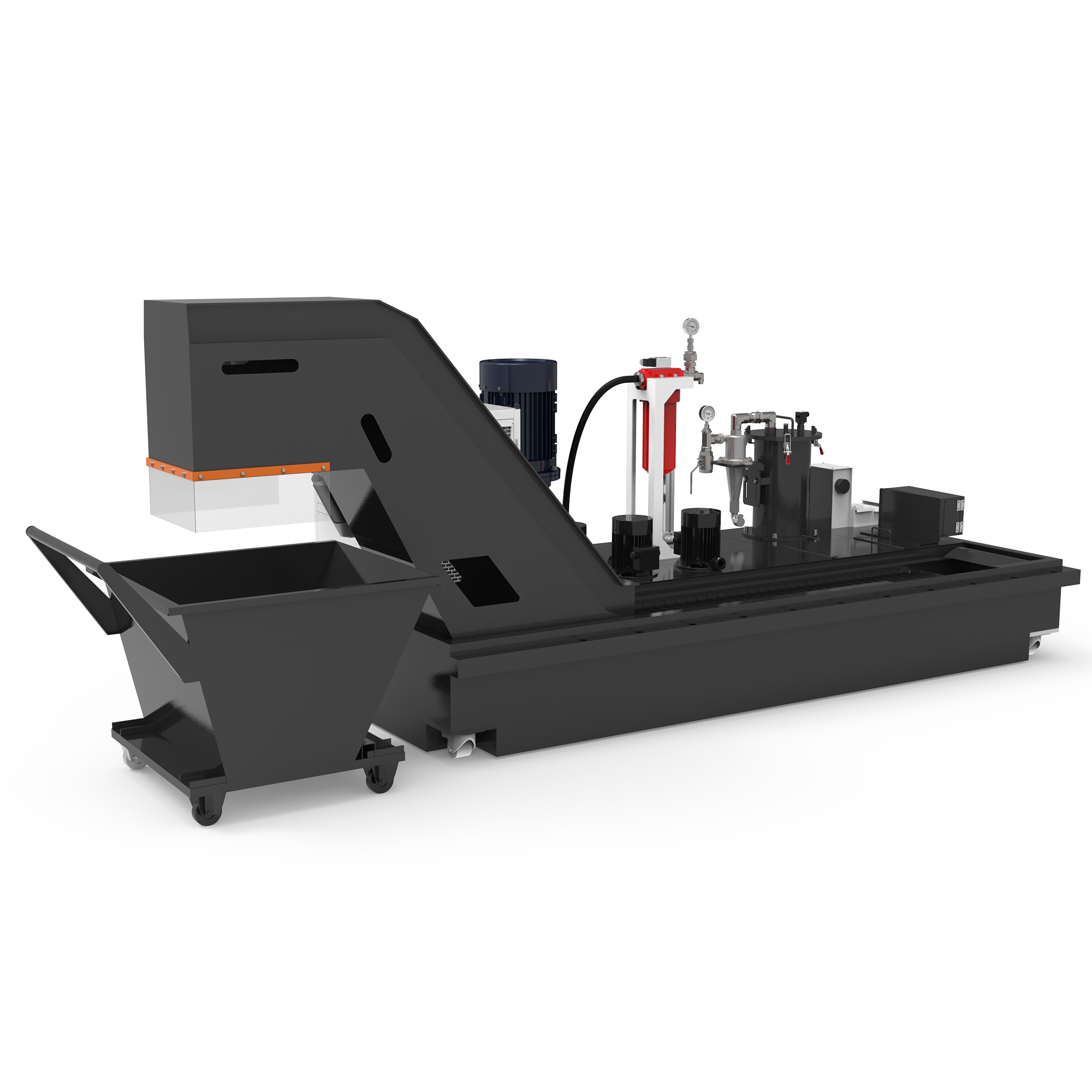

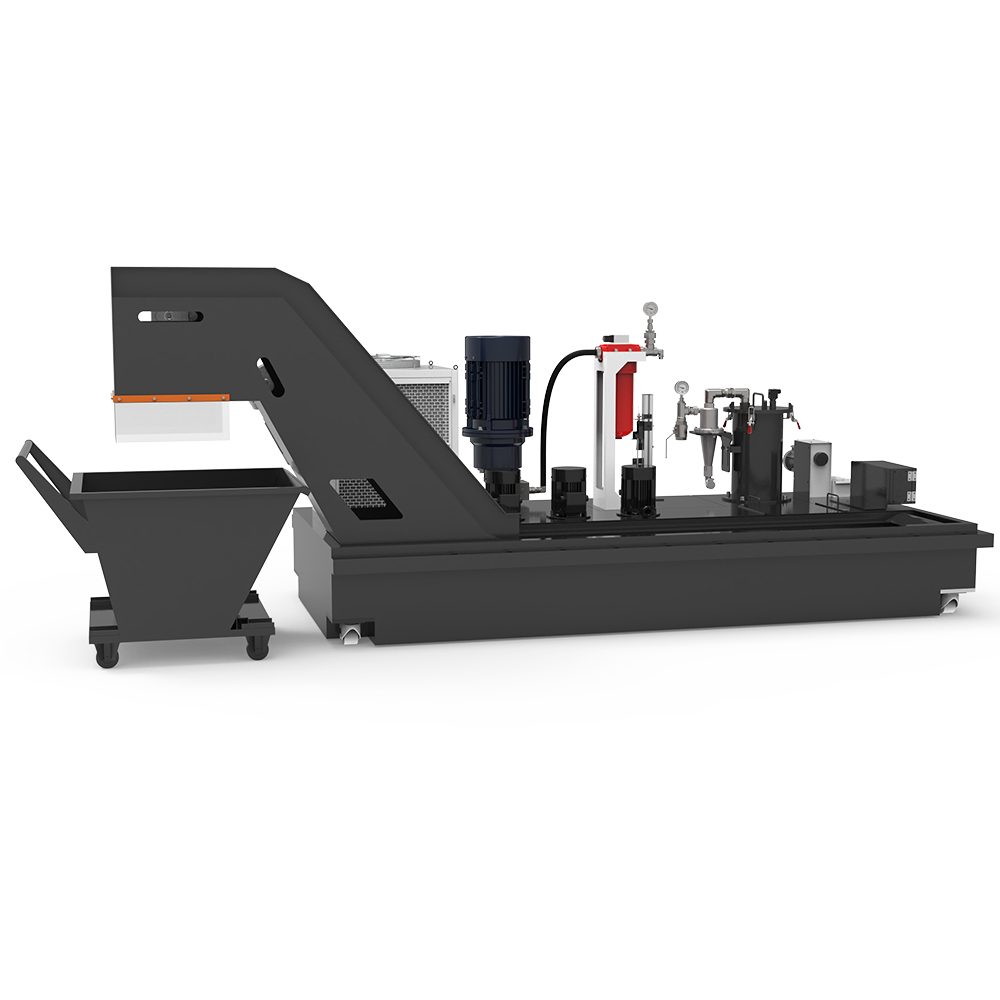

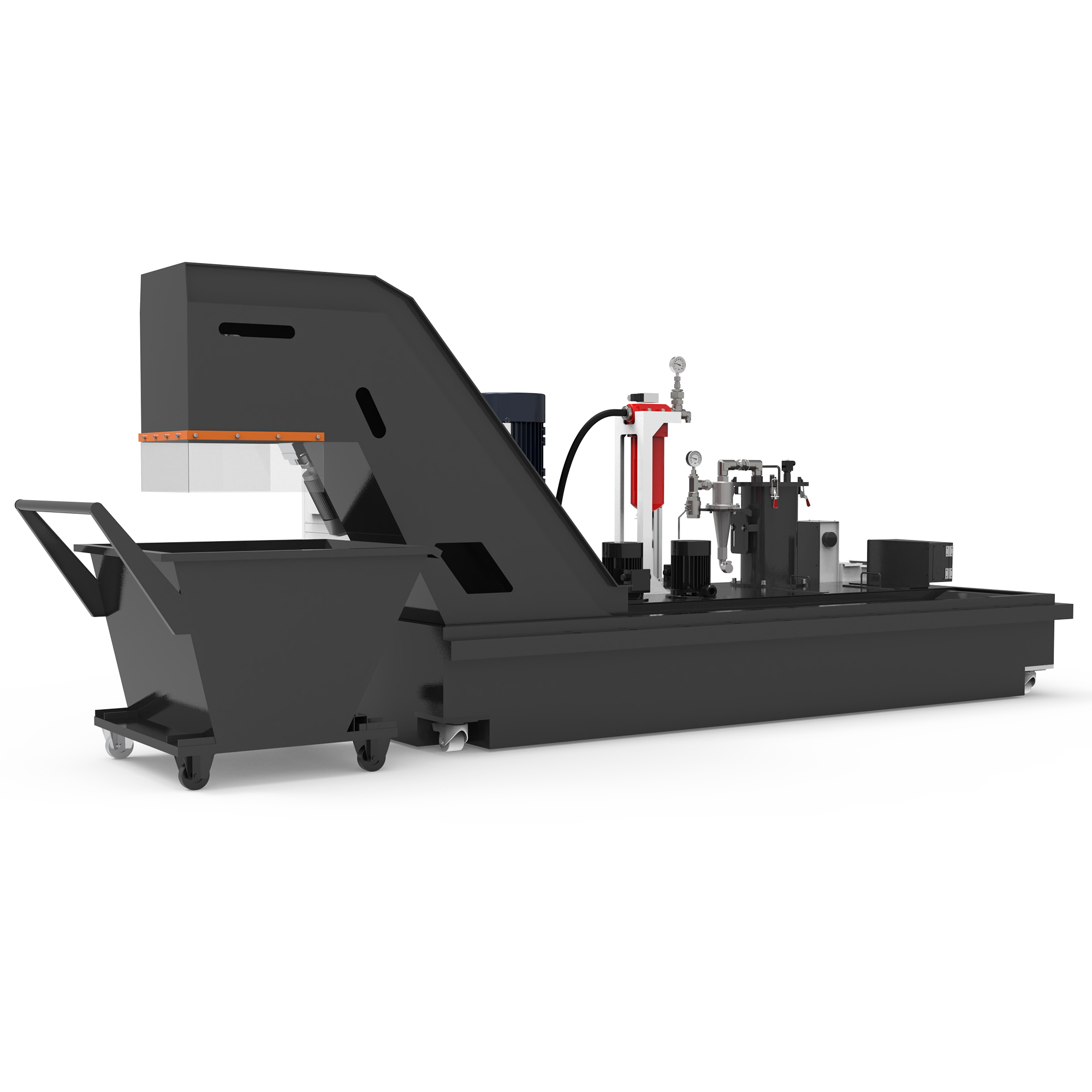

AK-ZH-YT2系列排屑機一體式綜合過濾系統由刮板/磁刮板排屑機、滾筒過濾器、油水分離機、液位檢測裝置、電氣控制系統、水箱及精過濾器等模塊組成。其特點包括滾筒自動清洗、連續過濾、高精度過濾、免維護、無耗材，能夠充分滿足加工中心在沖屑、主軸內冷及刀具冷卻方面的過濾需求。由于專用機床和加工中心對排屑量、冷卻液過濾精度及冷卻泵的流量和壓力有嚴格要求，用戶在訂購時需提供相應技術參數，以便優化設計。該設備適用于對冷卻液過濾精度要求較高的各類專用機床和加工中心，可用于鋁屑、鑄鐵屑等短碎屑的分離及冷卻液過濾。
AK-ZH-YT2 Chip Removal And CoolantFiltration System consists of a scraper/magnetic scraper chip conveyor, a drum filter, an oil-water separator, a liquid level detection device, an electrical control system, a water tank, a fine filter and other modules. its features include automatic drum cleaning, continuous filtration, high-precision filtration, maintenance-free, and no consumables. it can fully meet the filtering needs of the machining center in terms of chip flushing, spindle internal cooling and tool cooling. since special machine tools and machining centers have strict requirements on chip removal volume, coolant filtration accuracy, and the flow and pressure of the cooling pump, users need to provide corresponding technical parameters when ordering in order to optimize the design.this equipment is suitable for various special machine tools and machining centers that require high coolant filtration accuracy. it can be used for the separation of short chips such as aluminum chips and cast iron chips and coolant filtration.
