AK-GS-YT1系列排屑機一體式雙切換掛袋過濾系統是一款集鏈板或刮板排屑機與雙切換掛袋過濾系統于一體的復合排屑過濾裝置。其雙切換掛式布袋過濾系統含兩個過濾單元，每個單元配有三個布袋，兩個單元交替使用，可自動切換，實現連續工作不停機。優化設計延長了布袋的使用和更換周期，模塊化設計支持針對不同機床類型和工況進行定制選型。該系列設備由刮板/磁刮板排屑機、掛袋過濾器、油水分離機、油冷機、液位檢測裝置、電氣控制系統、水箱及精過濾器等模塊組成。其工作原理是利用過濾紙分離冷卻液中的細微切屑及雜質，以確保冷卻液的清潔度。

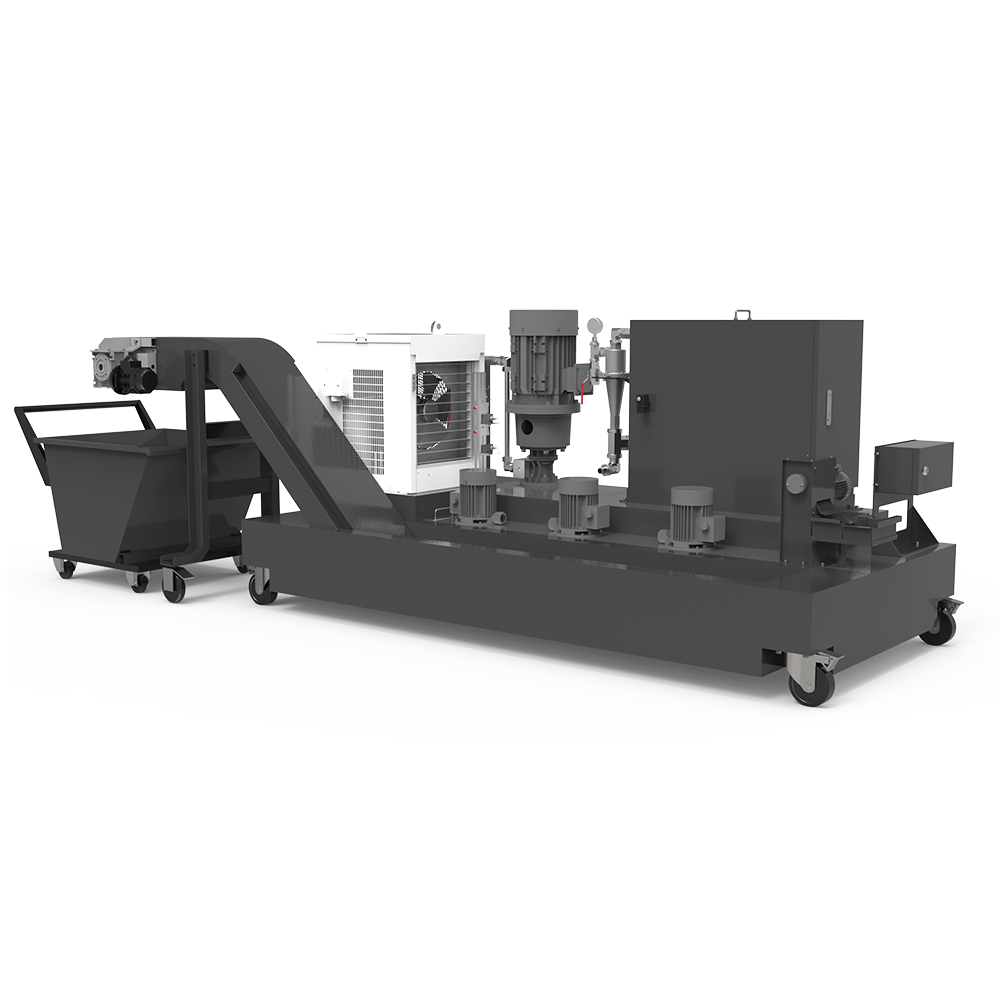

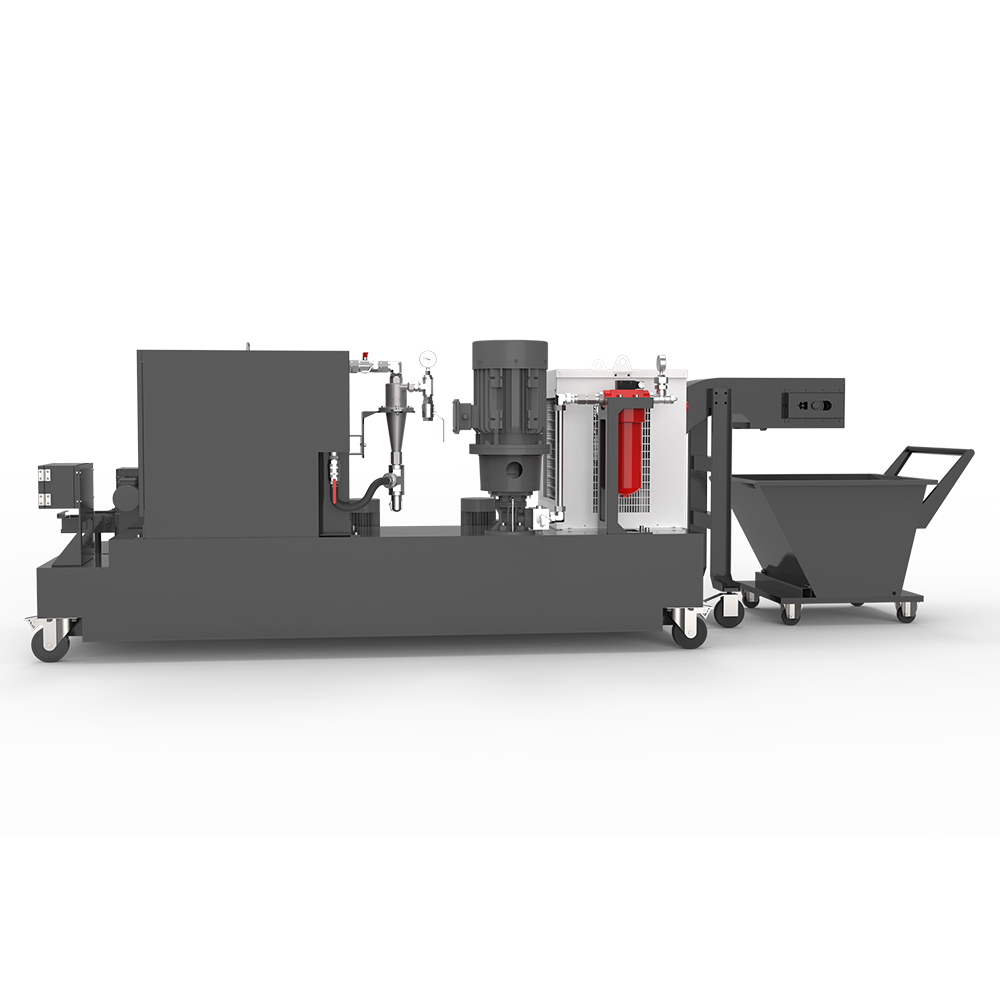

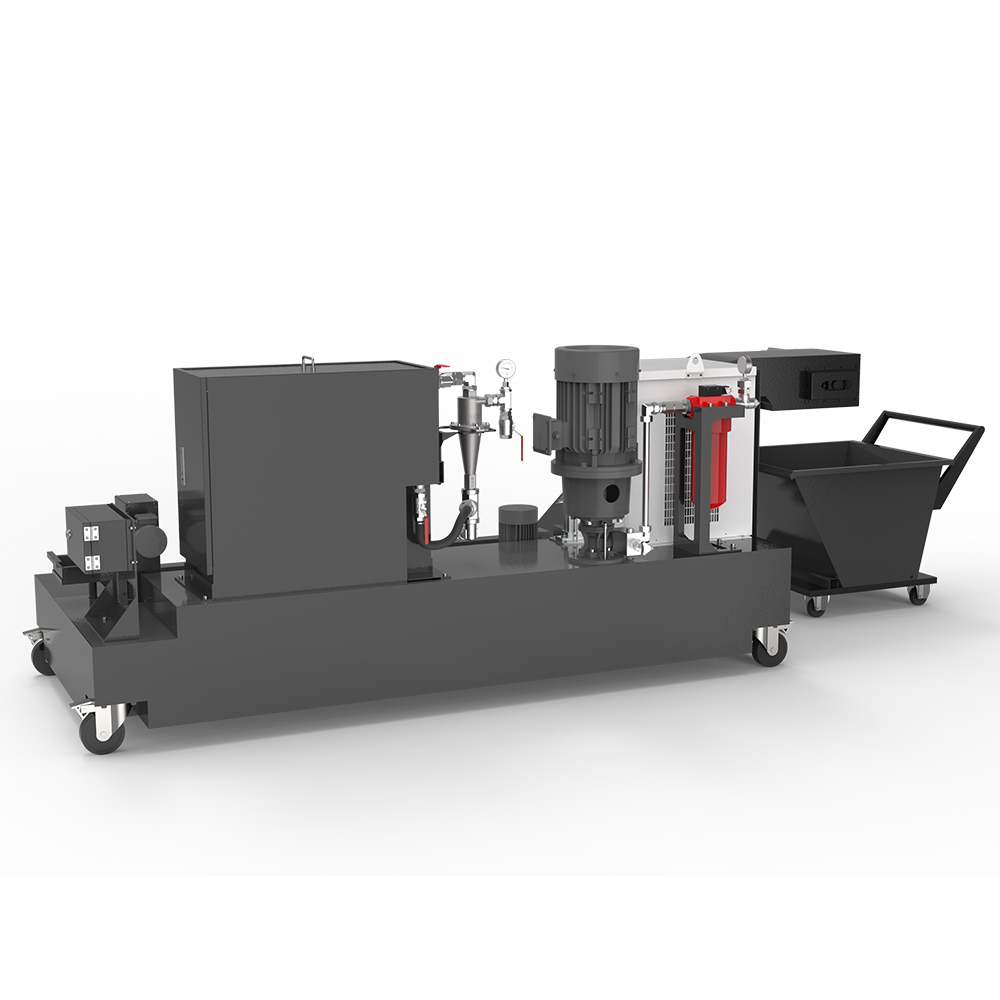

AK-GS-YT1 系列排屑機一體式雙切換掛袋過濾系統
AK-GS-YT1 Chip Removal and Double Switch Bag Filter System
一、性能、特點及用途--Performance,characteristics and application
AK-GS-YT1系列排屑機一體式雙切換掛袋過濾系統是一款集鏈板或刮板排屑機與雙切換掛袋過濾系統于一體的復合排屑過濾裝置。其雙切換掛式布袋過濾系統含兩個過濾單元，每個單元配有三個布袋，兩個單元交替使用，可自動切換，實現連續工作不停機。優化設計延長了布袋的使用和更換周期，模塊化設計支持針對不同機床類型和工況進行定制選型。該系列設備由刮板/磁刮板排屑機、掛袋過濾器、油水分離機、油冷機、液位檢測裝置、電氣控制系統、水箱及精過濾器等模塊組成。其工作原理是利用過濾紙分離冷卻液中的細微切屑及雜質，以確保冷卻液的清潔度。
AK-GS-YT1 Chip Removal And Double Switch Bag Filter System is a composite chip filter device that integrates a chain plate or scraper chip conveyor with a double-switch bag filter system. its double-switch bag filter system contains two filter units, each equipped with three bags. the two units are used alternately and can be switched automatically to achieve continuous operation without stopping. the optimized design extends the use and replacement cycle of the bags, and the modular design supports customized selection for different machine tool types and working conditions.

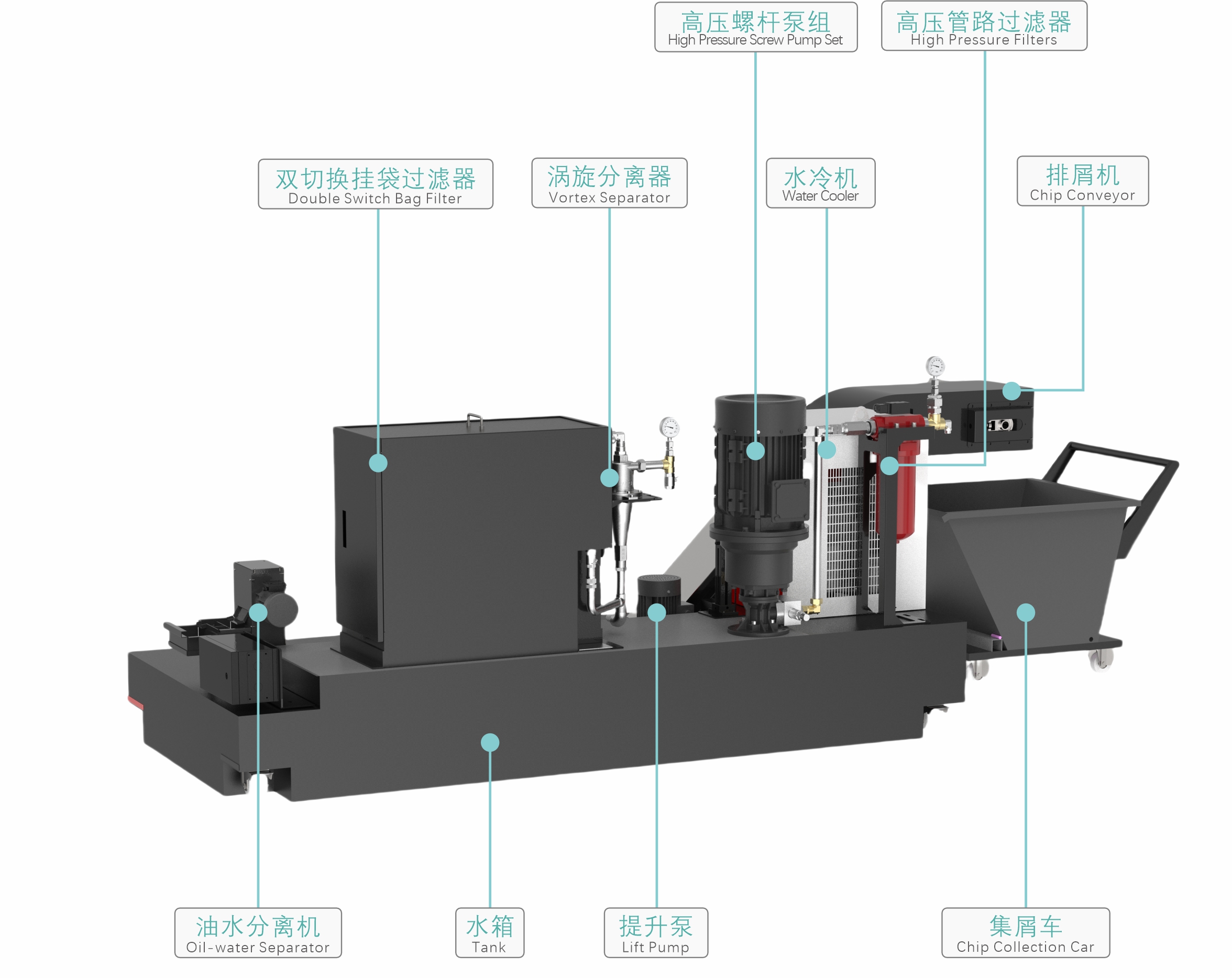

This series of equipment consists of modules such as scraper/magnetic scraper chip conveyor, bag filter, oil-water separator, oil cooler, liquid level detection device, electrical control system, water tank and fine filter. its working principle is to use filter paper to separate fine chips and impurities in the coolant to ensure the cleanliness of the coolant.
