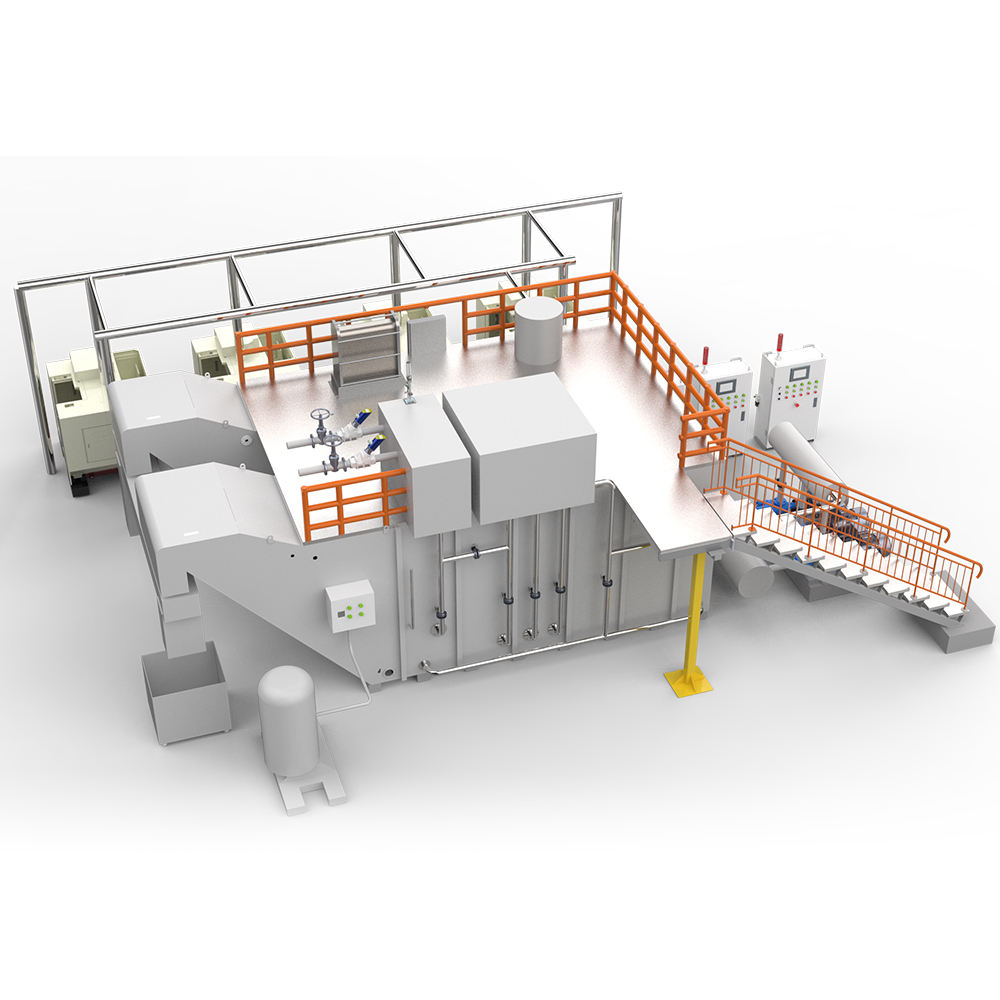

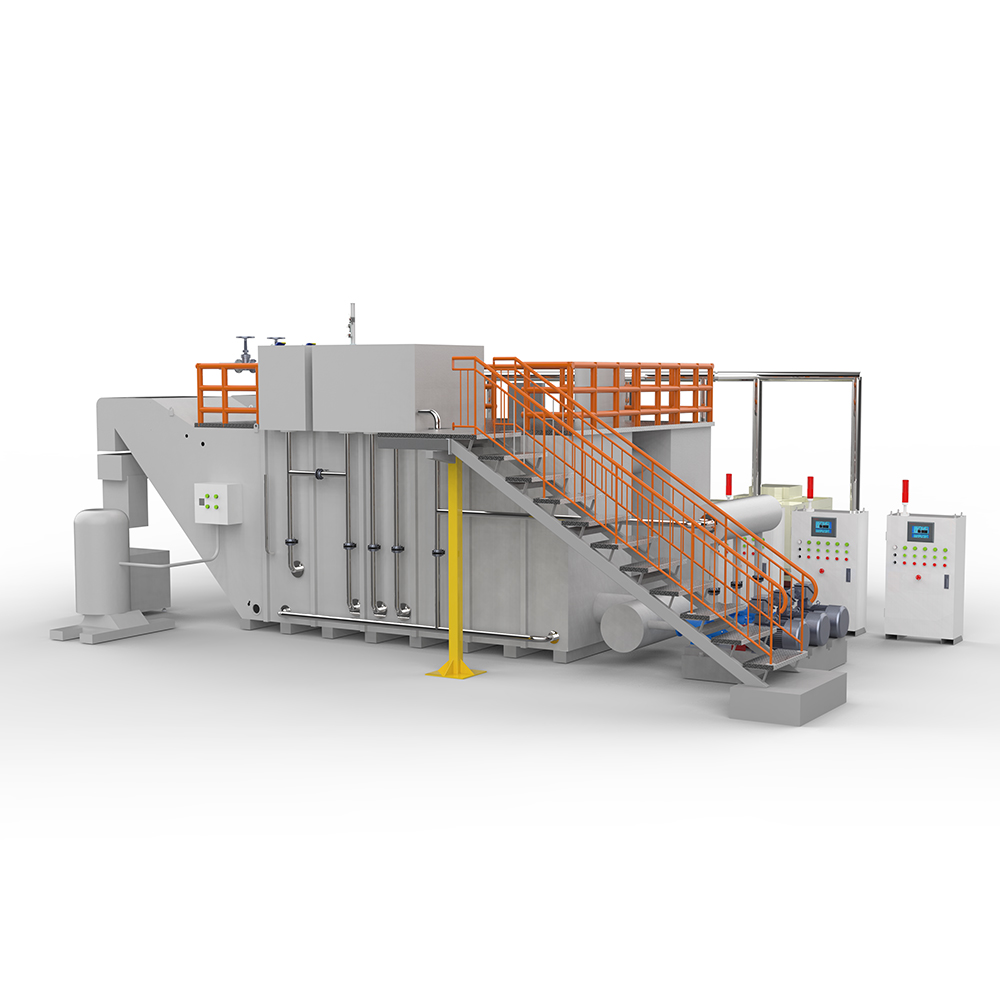

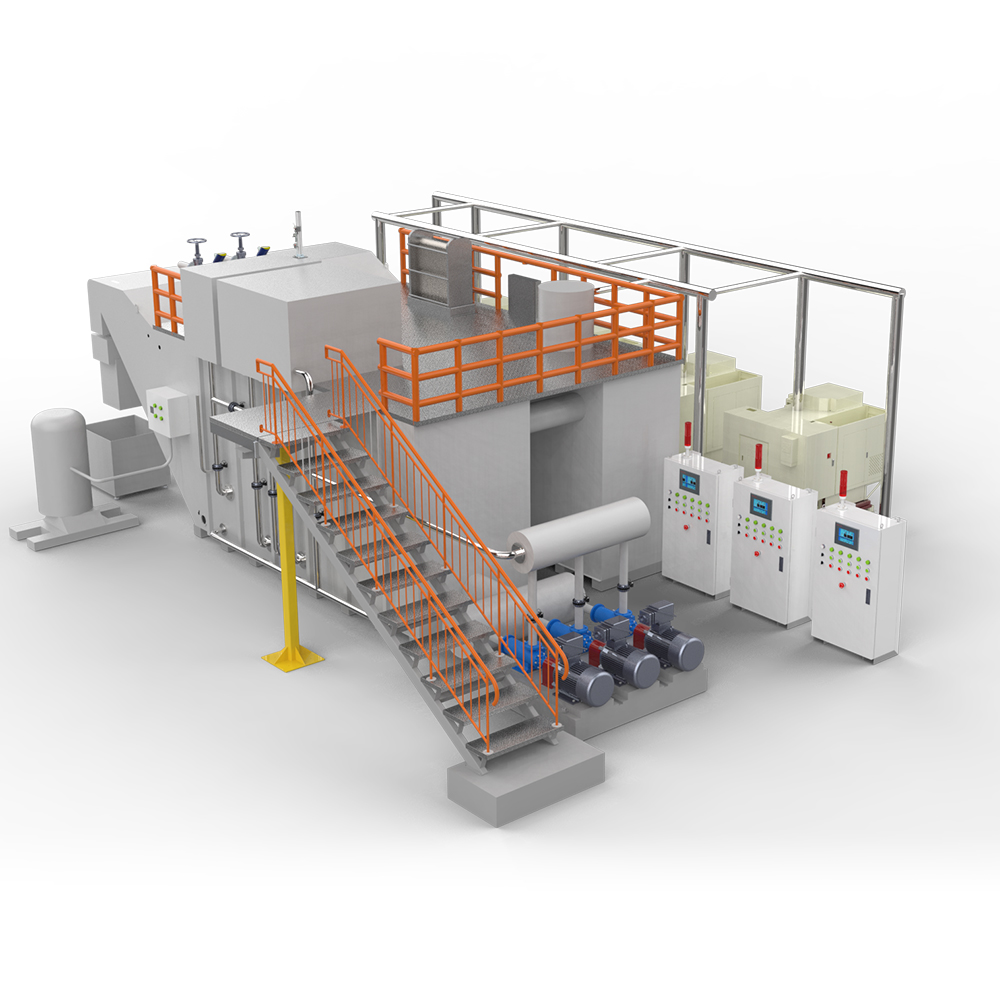

AKZB系列 集中過濾系統

AKZB Central Coolant Filtration System

一、性能、特點及用途--Performance,characteristics and application

         冷卻液集中過濾系統主要用于機床加工線冷卻液的集中冷卻與集中過濾。主要組成為刮板排屑機、負壓紙帶過濾機、冷卻液配液裝置、供液泵組、冷卻液防腐系統、PLC電氣控制系統、回液泵站等。冷卻液集中過濾的供液和回液大體有三種方案:一是上供、上排;二是上供、下排;三是下供、下排。方案的選擇取決于廠房條件和切屑性質，按用戶的具體情況設計方案。集中過濾可配油水分離、凈化再生和比例加液自動補水裝置，可長期保持冷卻液的使用壽命，保持車間衛生，節省費用，創造良好的生產環境。

         The Coolant Centralized Filtration System is mainly used for the centralized cooling and filtration of the coolant in the machining line of the machine tool. it is mainly composed of scraper chip removal machine, negative pressure paper belt filter, coolant dispensing device, liquid supply pump group, coolant anti-corrosion system, plc electrical control system, liquid return pump station, etc. there are three schemes for the supply and return of the coolant concentrated filtration: one is the upper supply and upper discharge; second, the upper supply, the lower platoon; the third is the lower supply and the lower row. the choice of the program depends on the plant conditions and chip properties, according to the user's specific situation design program. centralized filtration can be equipped with oil-water separation, purification and regeneration and proportional liquid automatic water refill device, which can maintain the service life of the coolant for a long time, maintain the health of the workshop, save costs, and create a good production environment.

        集中過濾系統采用的是負壓式紙帶過濾方式，變頻恒壓節能供液。高精度、大流量，可24小時連續供液;變頻泵恒壓供液;全自動控制運行、模擬工況顯示、故障顯示及報警;設備運行可靠穩定，故障率低;防腐系統大大延長乳化液的使用壽命;加工溫度波動小，*高過濾精度30um。(根據用戶現場工況，可提供冷卻液恒溫控制)。

          It adopts the negative pressure paper tape filtering mode, frequency conversion constant pressure energy saving liquid supply. high precision, large flow, 24 hours continuous liquid supply; variable frequency pump constant pressure liquid supply; automatic control operation, simulation condition display, fault display and alarm; the equipment runs reliably and stably with low failure rate; the anti-corrosion system greatly prolongs the service life of the emulsion; the processing temperature fluctuation is small, and the highest filtration accuracy is 30um. (according to the user's site conditions, can provide coolant constant temperature control).
